Fuel Tanks Designed to Meet Rigorous Applications

At EK, we offer a full list of fuel tank models that can be further customized to meet the application and environmental needs of our clients. Each model offers a standard set of features that can be further customized to meet detailed and complex specifications. From single-wall to secondary containment construction, all our fuel tanks are designed, manufactured, and finished to meet UL142, UL2085, and ULC standards.

gif;base64,R0lGODlhAQABAAAAACH5BAEKAAEALAAAAAABAAEAAAICTAEAOw==

When Quality, Safety, and Reliability Matter Most

Our tanks are designed tough to handle threatening environmental conditions like heavy winds and seismic activity. Made of heavy-gauge steel, our fuel tanks are protected from external and internal damage and are more than capable of carrying the weight of large-scale power generators. Our expert engineers and talented manufactures take a total team approach to quality throughout the production of each component and the final assembly of our fuel tanks, ensuring leak-free construction built to withstand the elements.

gif;base64,R0lGODlhAQABAAAAACH5BAEKAAEALAAAAAABAAEAAAICTAEAOw==
gif;base64,R0lGODlhAQABAAAAACH5BAEKAAEALAAAAAABAAEAAAICTAEAOw==

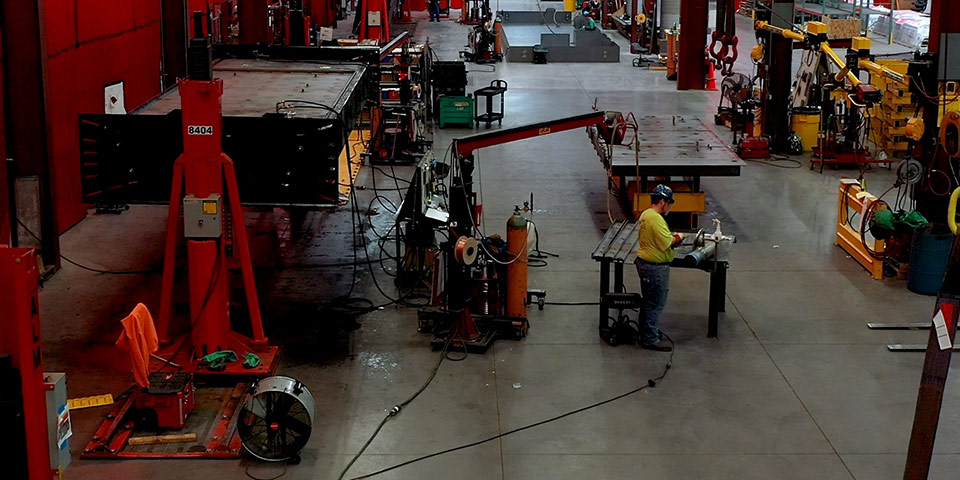

End-to-End In-House Capabilities

Our Complete Manufacturing and Power Products facilities work in conjunction with one another to design, develop, manufacture, finish, test, and assemble all the components of our fuel tanks. Because we offer machining, fabrication, welding, powder coating, testing, and inspection all on-site, we can verify every component meets or exceeds expectations to deliver a reliable and durable final product. Our state-of-the-art facilities and specifically designed to effectively manage large-scale power equipment to ensure successful implementation and completion of each of our products.

UL 142 & ULC Fuel Tanks for Flammable & Combustible Liquids

Take advantage of EK’s extensive experience in engineering, designing, and developing custom UL 142 and ULC fuel tanks. We manufacture our fuel tanks with heavy-gauge steel to ensure durability and to meet important safety requirements. Our in-house powder coating process helps to ensure a long-lasting, leak-proof reserve for when you need it most. Work with our engineering and manufacturing teams to customize a fuel tank to your application requirements.

Fuel Tank Options:

Sub-Base Fuel Tanks
Day Tanks
Primary Tanks

Standard Features:

UL 142 Requirements
50% Low Fuel Float Switch
2″ Working Fuel Tank Vent
NFPA Sized Emergency Vents
Mechanical Fuel Level Gauge
Heavy Gauge side channels
Basin Alarm Float Switch
Manual Locking Fill Cap
(2) Lifting Eyes Per. Side Minimum
Prime & Painted Black (Standard)

UL 2085 Fire-Rated Fuel Tanks

Our double-wall, fire-protected fuel storage tanks feature an inner chamber to insulate flammable and combustible liquids from major temperature fluctuations. These protective, fire-resistant fuel tanks are designed with safety in mind, to protect back up power systems in case of fire.

Fuel Tank Options:

Sub-Base Fuel Tanks
Day Tanks
Primary Tanks

Standard Features:

UL 2085 Requirements (2 Hour Fire Rating)
50% Low Fuel Float Switch
2″ Working Fuel Tank Vent
NFPA Sized Emergency Vents
Mechanical Fuel Level Gauge
Heavy Gauge side channels
Basin Alarm Float Switch
Manual Locking Fill Cap
(2) Lifting Eyes Per. Side Minimum
Prime & Painted Black (Standard)

Optional Fuel Tank Features

Work with our team of estimators, engineers, project managers, and expert manufacturers to customize a fuel take to meet your exact needs and specifications. Our optional fuel tank features include:

  • 5-10 Gallon Spill Box On Fuel Fill Port
  • 90% High Fuel Alarm Float
  • 95% High Fuel Alarm Float
  • High Fuel Alarm Panel W/ Horn
  • Pump Sets W/ Controls
  • Remote Fill Station
  • Access Platforms
  • Electric Fuel Gauge W/ Tank Monitoring System
  • Fuel Polishing Systems
  • Emersion Style Tank Heater
  • Mastic Coating on Bottom of Tank
  • Extend Vents
  • 95% Over Fill Prevention Valve On Fill Port
  • Check Valve On Engine Supply Port
  • 2″ Quick Connect Fitting On Fill Port W/ Dust Cap
  • Solenoid Valves
